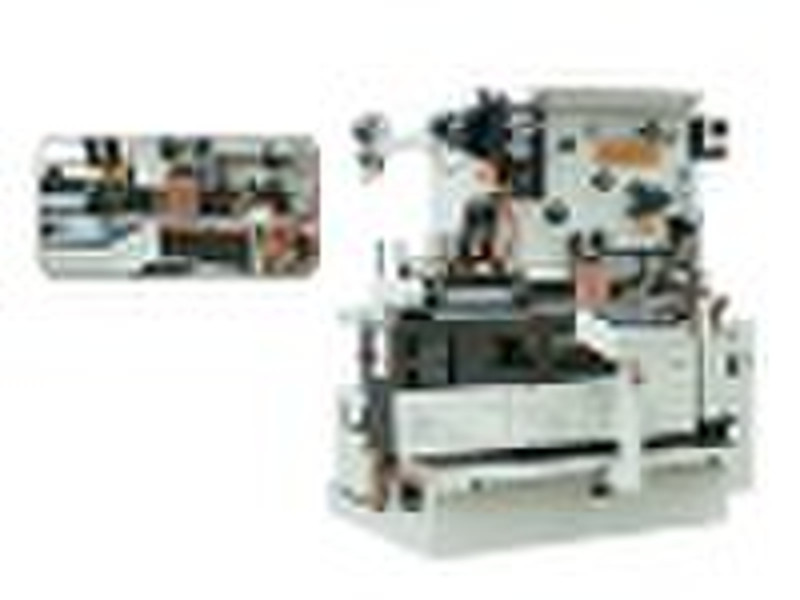

seam welding machine for cans manufacturing

seam welding machine for cans manufacturing 1.screen-touch operation 2.assembled with new high frequency counter current power 3.use PLC system 4.fully automatic Detail: Model FHZ-B Applicable can diameter 98-180mm Applicable can height H100-265mm Production capability60-100cans/min Seam welding landing 0.4mm 0.6mm Linear rate of welding 6-24m/min Sealing point distance 0.5-0.9mm Material Tinplate Ni plate Sheet thickness 0.16-0.3mm Sheet hardness T2-DR8 Copper diameter Φ1.38mm, Φ 1.5mm Cooling water 0.4 Mpa 12-18°C 20L/min Compressed air 0.5 Mpa Volume of compressed air 800L/min Coating capacity 6-30m/min Coating manner by rotaing wheel (Automatic glue-feeding) Coating width 10-14mm Drying capability 6-30m/min Drying manner Drying by electric heating Size of seam welder 1730×1695×1920mm Sizoof intemal and extemal coating 2100×650×1300mm Size of drier 9600×680×1460mm Input power three-phase AC380V 50Hz Total power of the producing line 50KVA Total weige of machine set 4600Kg Our major component suppliers: 1. Pneumatic elements are purchased from Japanese “SMC”2. Hydraulic elements are purchased from Taiwan precision brand3. Electronic control devices are purchased from “Schneider”, “Omron” and some domestic suppliers4. Worktable surface is produced by #304 stainless steel gold plated5. Machine surface paint is purchased from “NAVECO” car paint seam welder machine for can,Automatic,seam welder machinery,seam welding machine,seam welder.welding machine,welder
